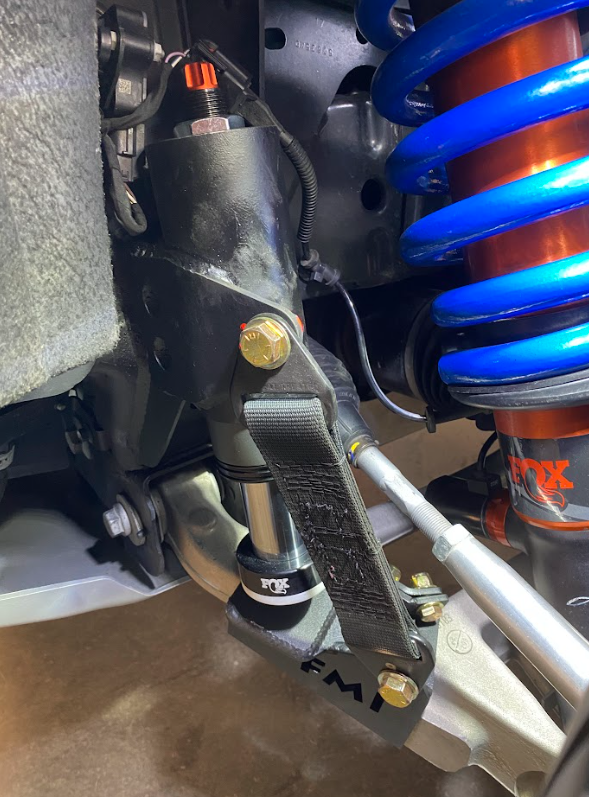

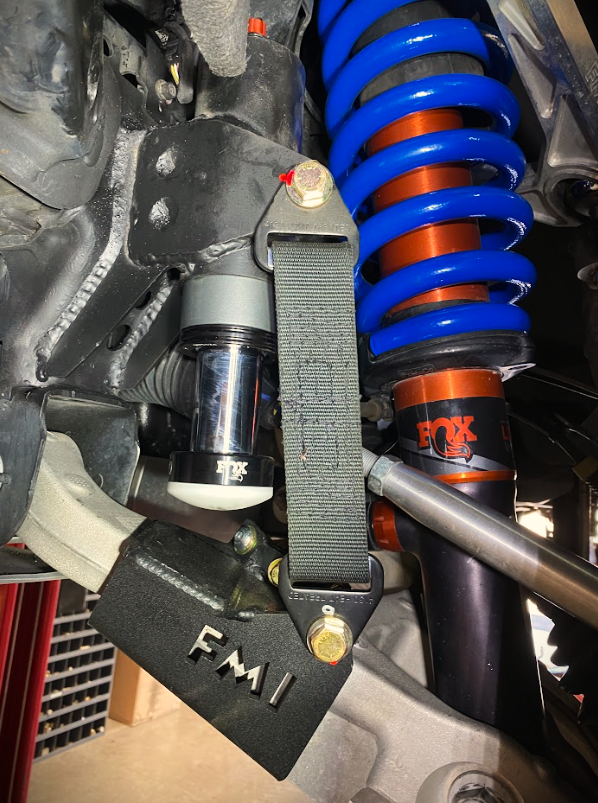

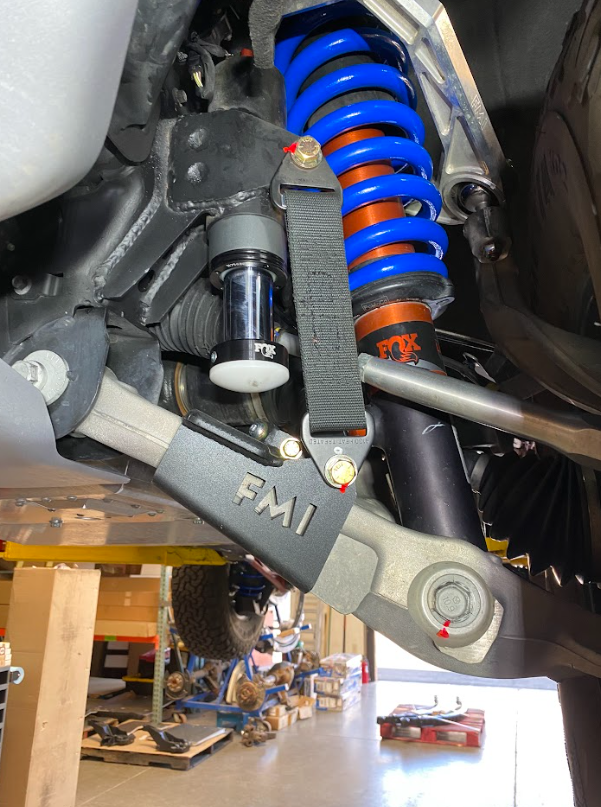

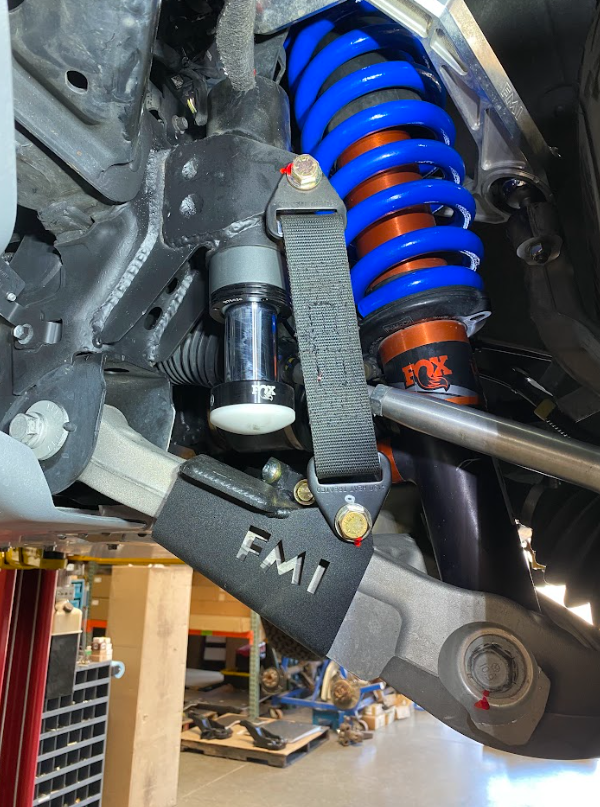

Bronco Raptor (2022 +) Front Limit Strap & Bump Stop - Stock Lower Arm

$ 1,859.99 USD
Shipping calculated at checkout.

Description

Get the ultimate stock front suspension upgrade with our new front limit strap and bump stop kit for Bronco Raptor.

KEY FEATURES & BENEFITS
• Designed to work with your factory stock lower a-arm and bolt on to the cast aluminum.
• Limits the top out travel and saves your top shock mount from premature damage.
• Extends the life of your Raptors front suspension components
• Restraints the top out so you don't have to rely on just the shock to stop the droop.
• An absolute must-have If you’re using aftermarket springs on your Bronco Raptor

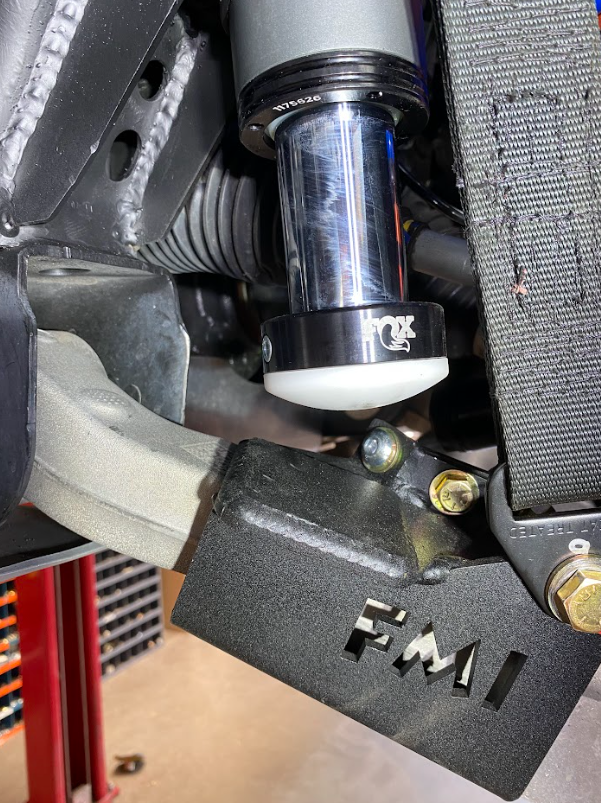

• Engineered to work with Fox, King, or ADS front bump stops.  2.5" OD and 2.5" travel bump stop provides full bottom out protection.
• Works for 2022, 2023 & 2024 Bronco Raptor

EXTREME DURABILITY & STRENGTH

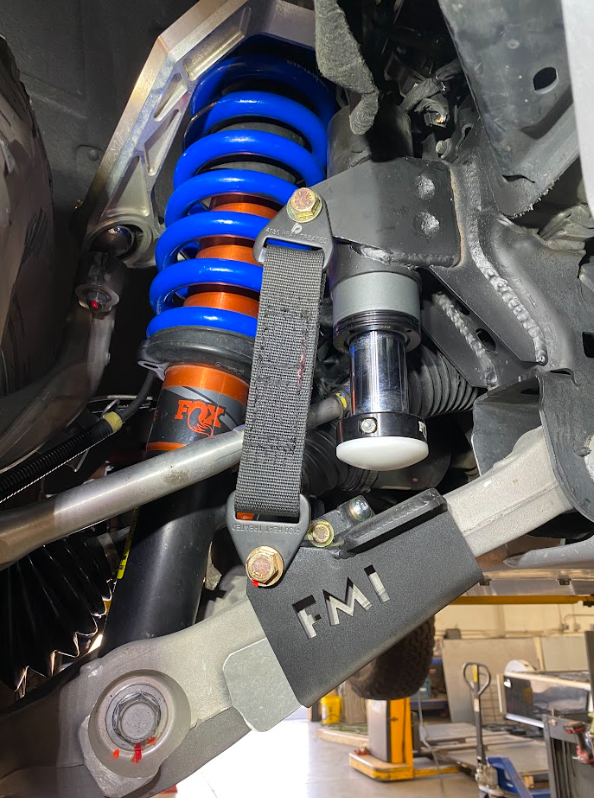

• The 9" straps are made of high quality material that is capable to withstand abuse when you off-road. Their extreme durability will provide you with long lasting strength, unlike cheap straps that will stretch and wear out over time.

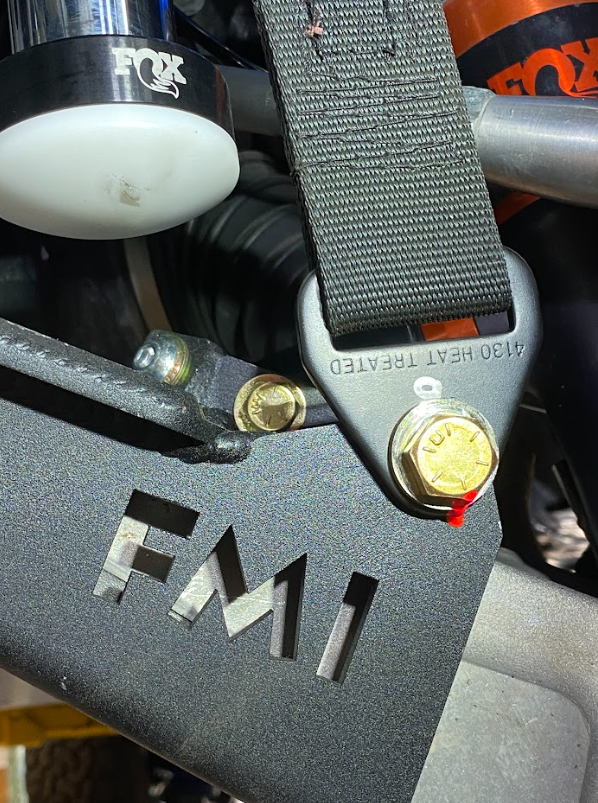

• Each strap features 4 layers of military grade webbing with steel mounting tabs at the end that are plated black.

MOUNTING BRACKET WITH BUILT-IN BUMP PAD

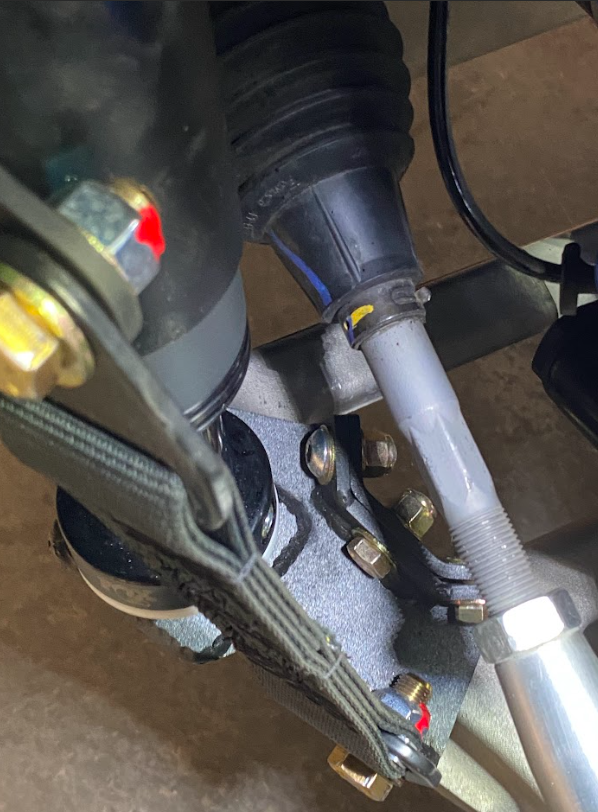

• A bump stop pad is built into the mounting brackets as an easy addition for a front bump stop kit to be added at any time.

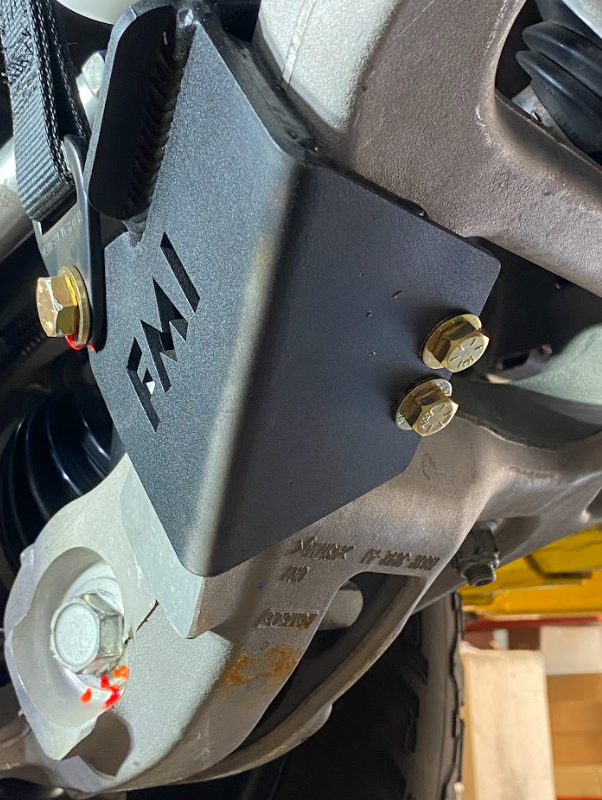

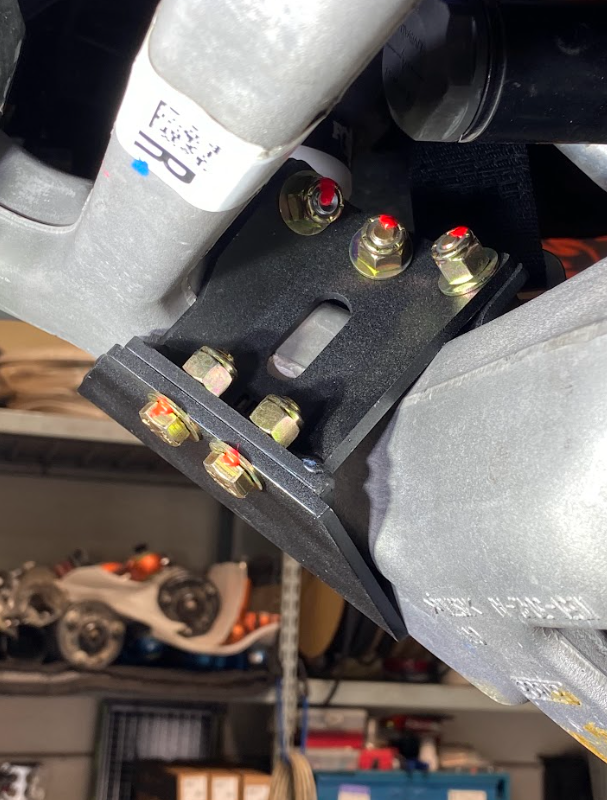

• The mounting brackets that secure around the front of the lower stock control arm and are mig welded in house and then finished in a hammer black powder coat for ultimate durability and strength.

*** INSTALLATION NOTE ***

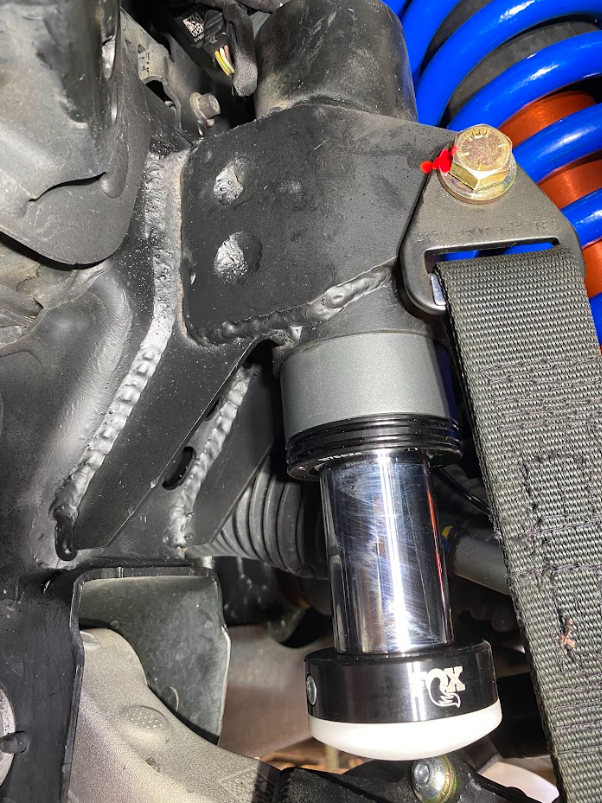

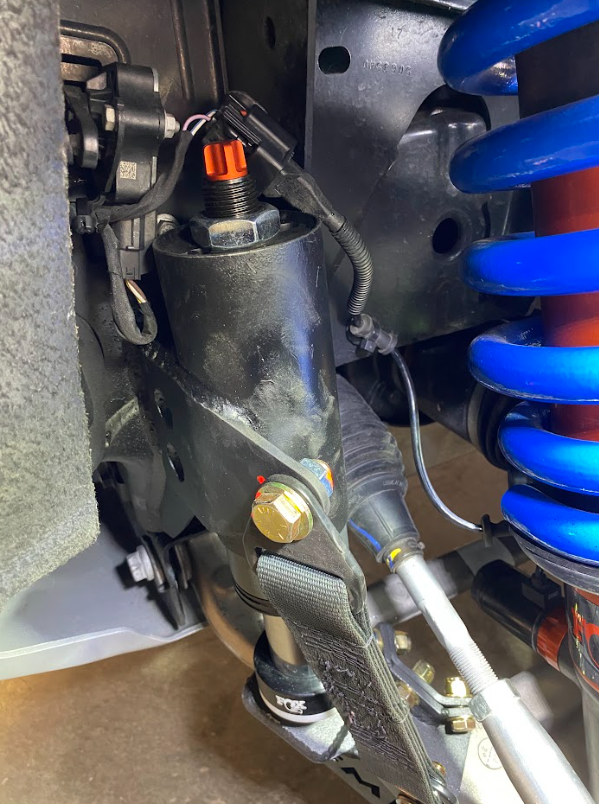

• This kit requires you to weld the Bump stop mount to the frame and should be installed by a qualified welder/fabricator

KIT INCLUDES:
• ( 2 ) 9" length Limit Straps
• ( 2 ) Bump stop can mounts
• ( 2 ) Weld-On Mounting Tabs
• ( 2 ) Gussets
• ( 2 ) Main Mounting Brackets
• ( 2 ) Mounting Bracket Plates

**** You can add Fox, ADS or King bumps to the kit by selecting that option before adding to your cart.

Lower Control Arm Mounting Bracket Hardware:
• ( 10 )  3/8-16  x 1 1/4" Bolts
• ( 10 ) 3/8-16 Nyloc Nuts
• ( 6 ) 3/8 Washers
Lower Strap Mounting Bracket Hardware
• ( 2 ) 1/2-20  Nyloc Nuts
• ( 2 ) 1/2-20 12 point Bolts
• ( 4 ) 1/2 SAE washers
Upper Strap Mounting Bracket Hardware
• ( 2 ) 1/2-13 x 1 1/2"  Bolts
• ( 2 ) 1/2-13  Nyloc Nuts
• ( 4 ) 1/2  SAE Washers



***  NEW KIT PLEASE ALLOW 4-6 WEEKS FOR PRODUCTION AND DELIVERY  ***

Fox bump Version =- FMI050603955030101
King bump Version =- FMI050603955130101
ADS bump Version =- FMI050603955230101
